TIMBER SPRING SASH WINDOWS

Constructed from engineered European redwood, the CSW5 range is perfect for new properties, renovations and window replacement projects. The spring sash design reduces the width of the frame allowing the maximum amount of space for the glazed sashes. With three widths of Georgian bar, six choices of horn detail and your own choice of finish colour, included in the standard price, this is a window to make your own!

Please take time to browse the gallery of images and detailed CSW5 product specification that appears below.

CSW5 - Gallery

4-coat finishing process in your colour choice.

Choice of six horn designs.

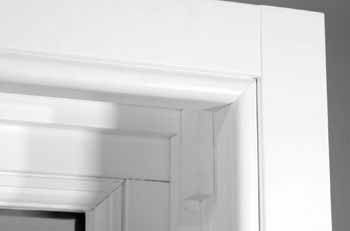

Traditional timber construction throughout.

Locking cam catch and keep.

Two sash lifts on lower sash.

Ironmongery choice: satin, chrome, brass or gold.

CSW5 - Specification

The numbered features on the line illustrations below are explained in the detailed specification that follows.

The Cambridge Sash Window CSW5 range includes:

1   Engineered European redwood construction
2   Authentic Georgian bar – choice of three widths
3   Horn detail – choice of six designs
4   Bottom rail (of lower sash) – choice of three depths
5   Mid-rail - slim
6   Outer frame – traditional timber jointed construction
7   Sashes – traditional timber jointed construction
8   A-Rated 24mm Argon gas filled double glazed units
9   Top sash ring pull (one)
10   Lower sash lifts (two)
11   Spiral balance sash design
12   Locking cam catch and keep (one up to 800mm sash width, two over 800mm or dependent on Georgian bar design)
13   Window furniture choice: satin, chrome, brass or gold
14   Child restrictor limit stops – two (governs lower sash opening)
15   Choice of sash tilt-in knobs
16   Black spacer bar (within glazed units)
17   Hidden Q-lon draught excluder
18   Your colour choice – 4-stage finishing process: preservative, base coat and two top coats
19   Dual colour option

OPTIONS
•  Engineered hardwood construction
•  Trickle vents
•  Toughened glass
•  Acoustic glass
•  Acoustic toughened glass
•  Other glass options available
•  White spacer bar (within glazed units)

GUARANTEE
10 year guarantee
The CSW6 range is covered by both the manufacturer’s guarantee and our own Cambridge Sash Windows 10 year insurance backed DGCOS guarantee.
